Hello, my name is Princes FPV Drones, and I am an FPV pilot. As an FPV pilot, I have a lot of LiPo 6S batteries, and since the FPV drone utilizes the same kind of battery, I wanted to enable the DJI FPV drone to use them. (2025) Little did I know that this would be a far more complex project than I ever anticipated.
First, I looked online and found very little information regarding such an adaptation. There were Channels of pilots attempting this concept, but never to completion. The few articles and YouTube videos on this subject left me wondering, “What happened?” So I started my journey to accomplish this rather involved task.
My initial research revealed that DJI FPV intelligent batteries comprise a “smart” BMS control board and a standard LiPo battery. They communicate with the drone, providing information such as battery voltage and temperature. Without this information, the drone will not start its motors. Upon further research, I found that a person named AirCruiserFPV had successfully overcome this issue.
Below is one of my videos on how I disassembled the DJI FPV battery and the steps to enable the use of the AirCruiserFPV breakout board with non-DJI batteries.
This was great news!
However, as simple as this solution was, I wanted to make it more available to the FPV community, especially here in the USA. Therefore, I have put together this website to that end, and you can purchase his board at the BUY NOW button below:
After purchasing
Please ensure you download the assembly instructions below:
Note: These quality AircruiserFPV boards are made in Germany.
By purchasing through this website, you agree that you fall into one of the 48 continental states of the USA.
No returns accepted
INSTRUCTIONS

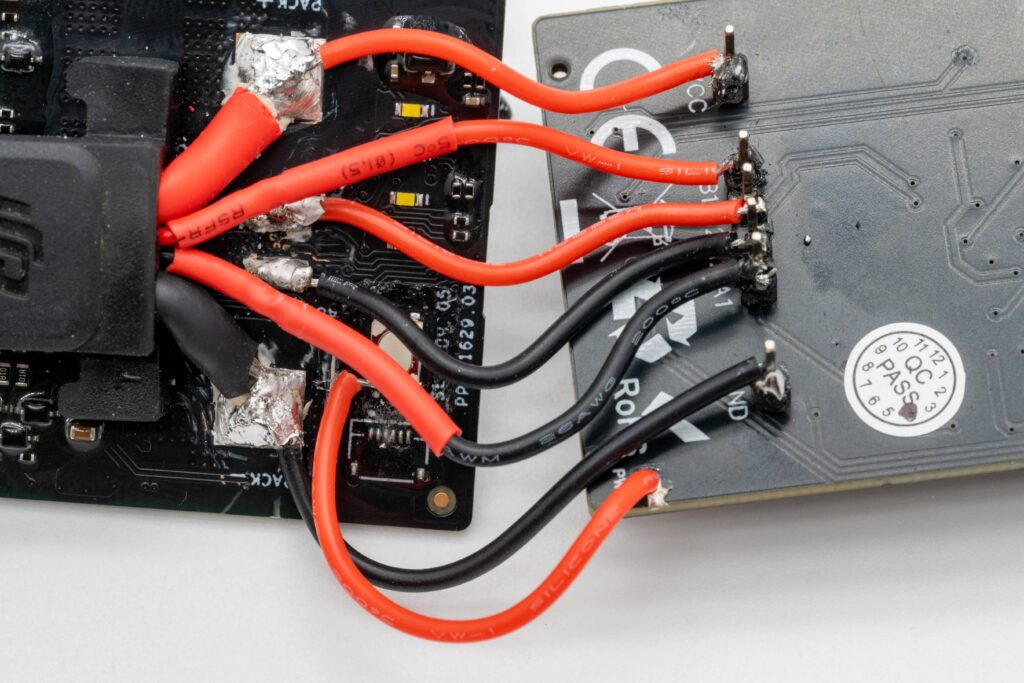

Wiring diagram

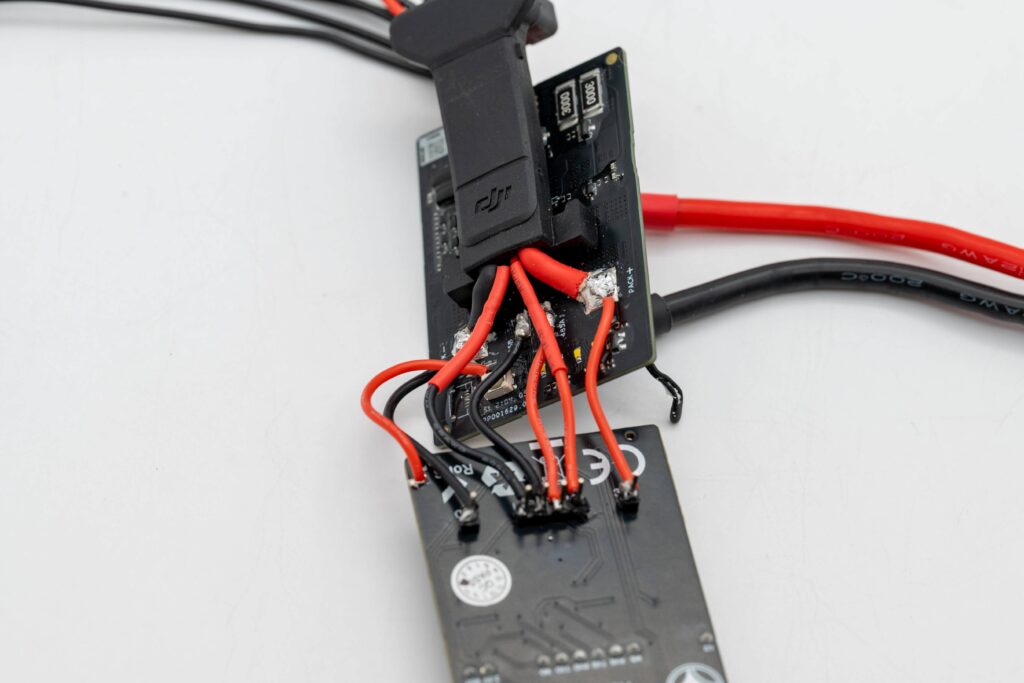

Wiring diagram
Module assembly

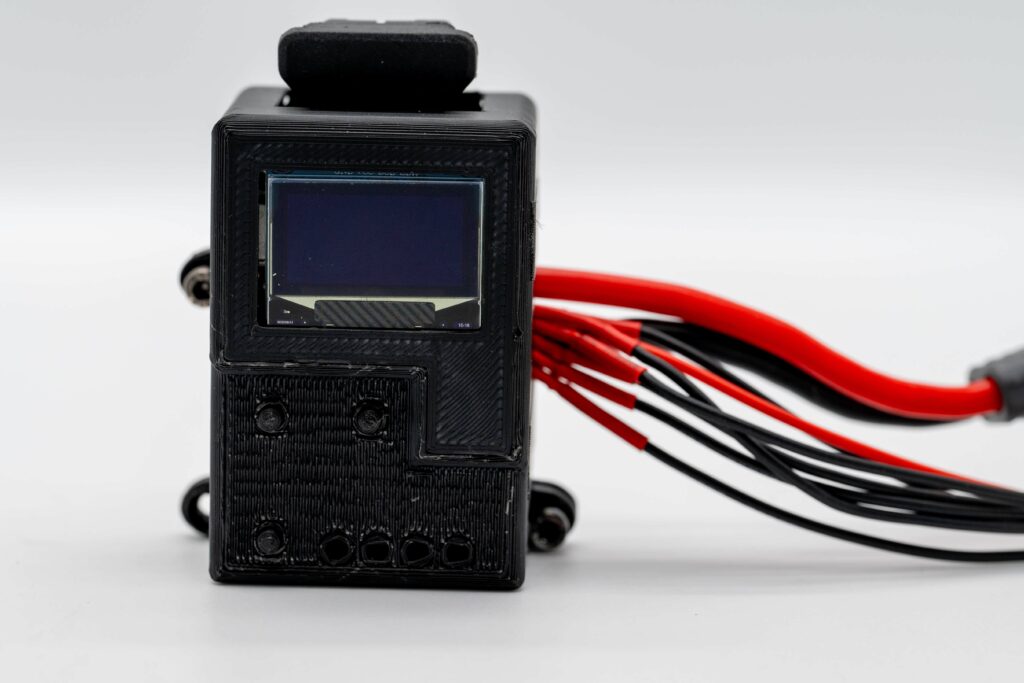

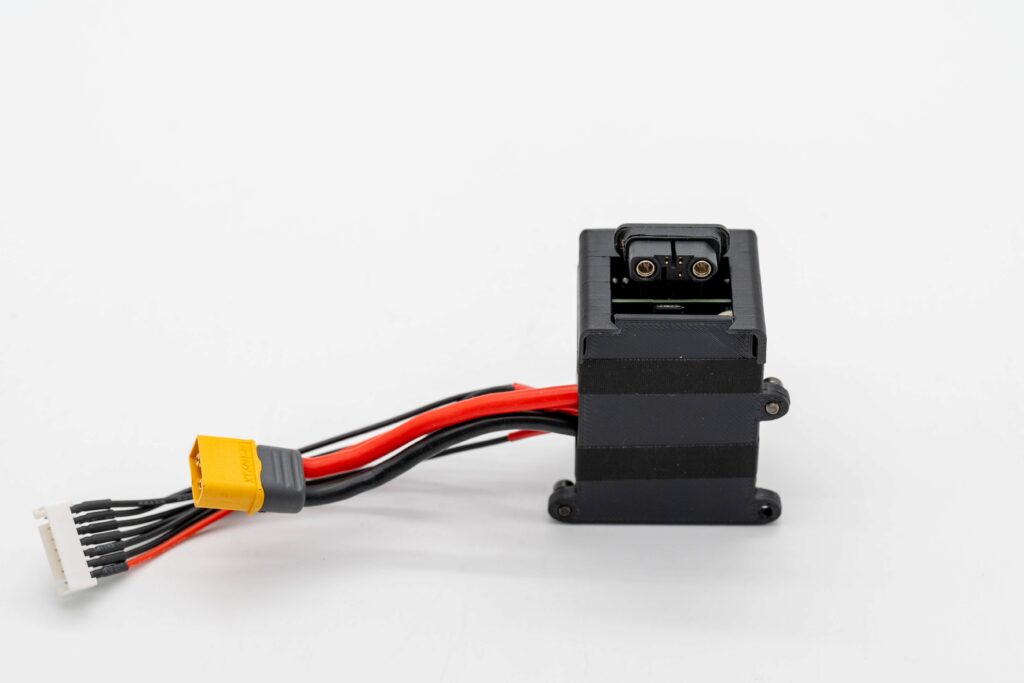

Ready for use
Original DJI FPV drone battery

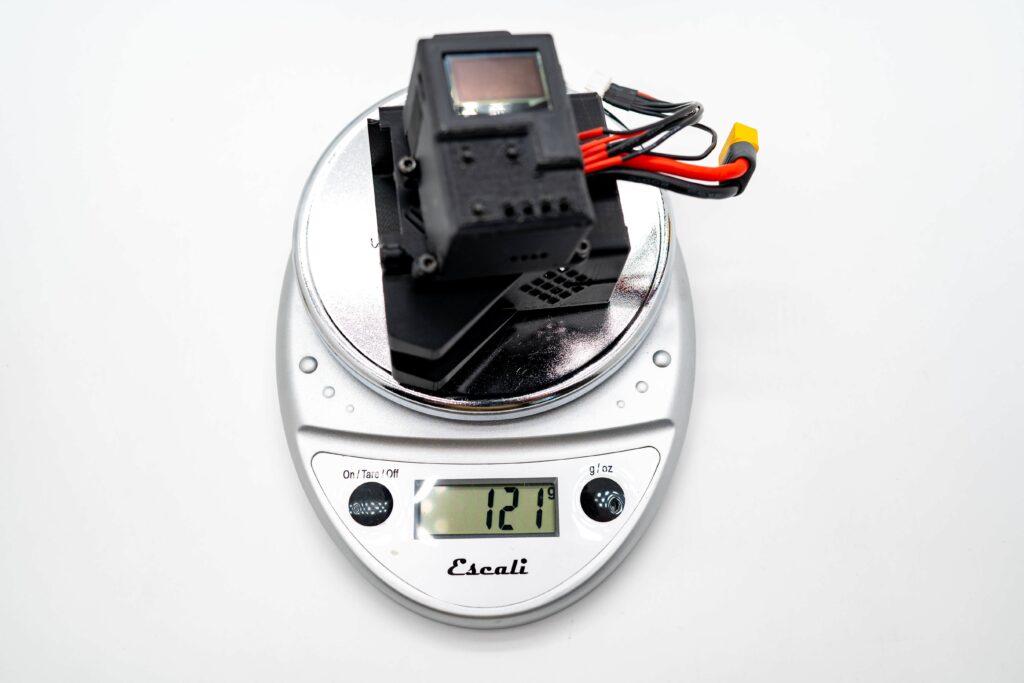

Total component weight: 121 grams
Endurance testing
Before testing flight times, we need to establish a base to compare from. We will be using a completely stock DJI FPV drone with no modifications to the physical configuration or software. We will be using the stock DJI FPV drone battery, which is fully charged and has fewer than 10 cycles. We will be cruising around in Normal mode with zero wind. We will record the weight of the drone in grams, as weight directly affects flight time.
DJI FPV STOCK Drone with stock battery: 784 grams
12 minutes 20% battery left
Normal mode
Original DJI 2000mAh battery: 280 grams
Testing DJI FPV STOCK Drone DJI Battery (7-13-2025)
DJI FPV Drone aircruiserfpv mod, flight (6-01-2025)

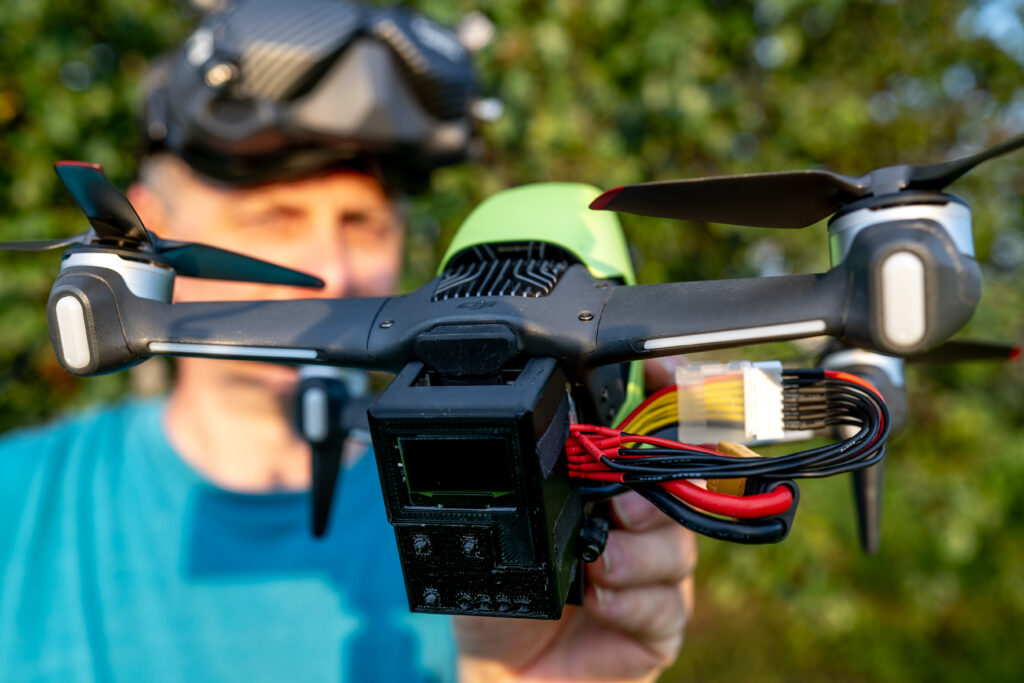

DJI FPV UPGRADED drone
5 minutes
60% battery left
Normal mode
Stock battery cells with @aircruiserfpv Breakout board
Total: DJI FPV Drone, AircruiserFPV Breakout board with DJI Stock Lipo cells Battery: 907 grams
DJI FPV Drone aircruiserfpv solution (6-24-2025)
Assembly instructions
We are experimenting with other Lipo 6s batteries.
This one filled the hole space with its sells .
DJI FPV STOCK drone
DJI Original Battery: 280 grams
DJI Original Battery cells: 242 grams
AircruiserFPV module and cage: 121 grams
Zeee 6S 1500mAh Lipo Battery: 249 grams
Total: AircruiserFPV with Zeee 6S 1500mAh Lipo Battery: 369 grams
89 grams heavier than the Original DJI battery

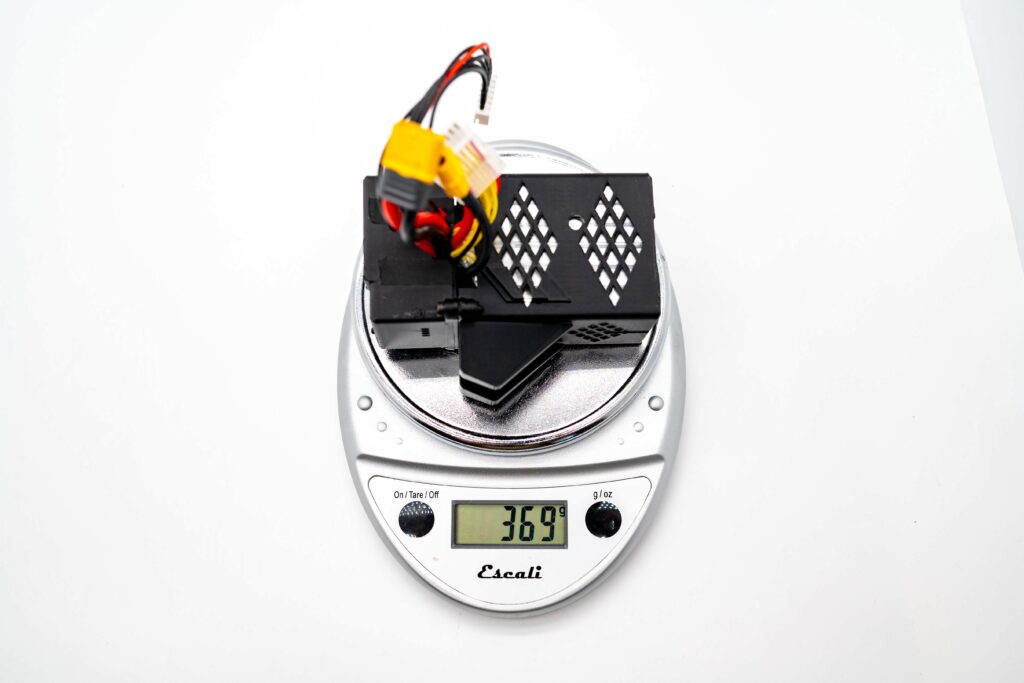

Total of 369 grams with the Zeee 6S 1500mAh Lipo Battery

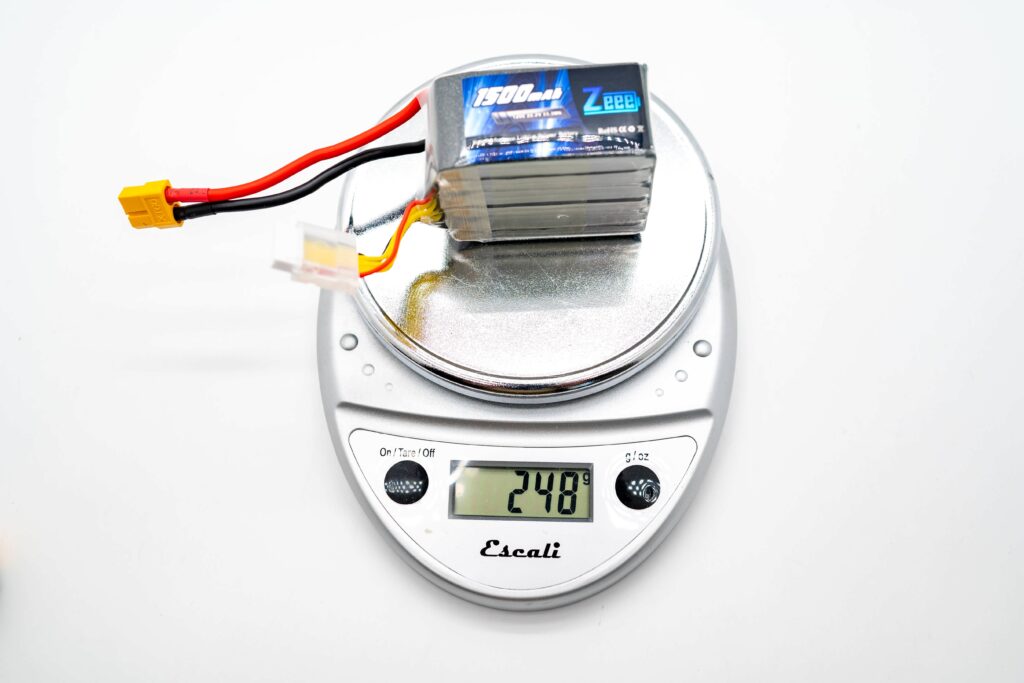

Zeee 6S 1500mAh Lipo Battery 248 grams

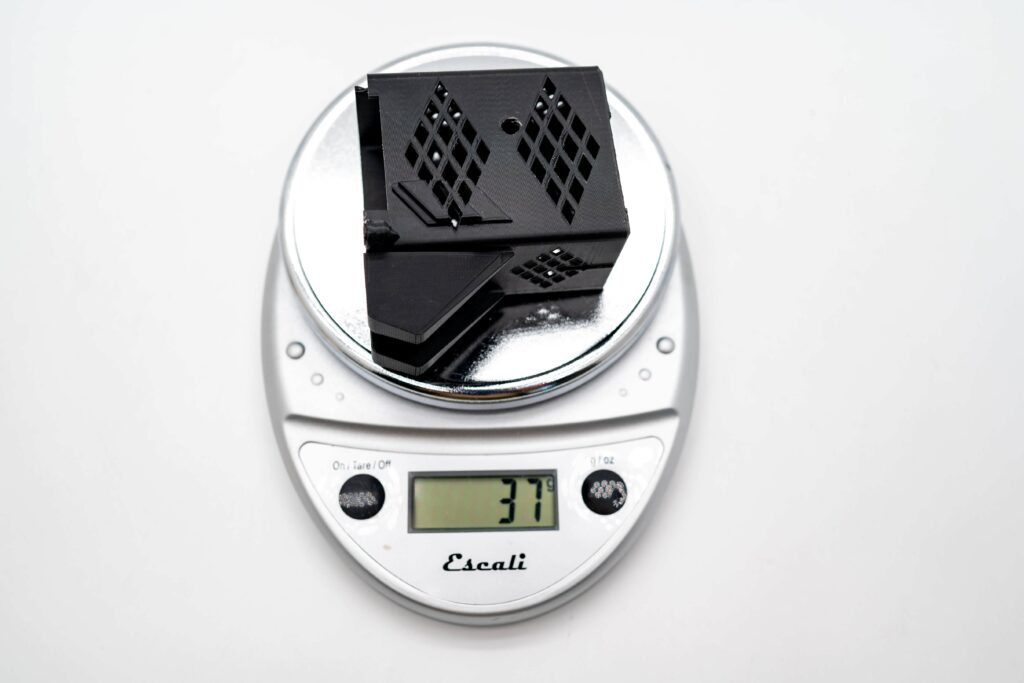

Cage 37 grams

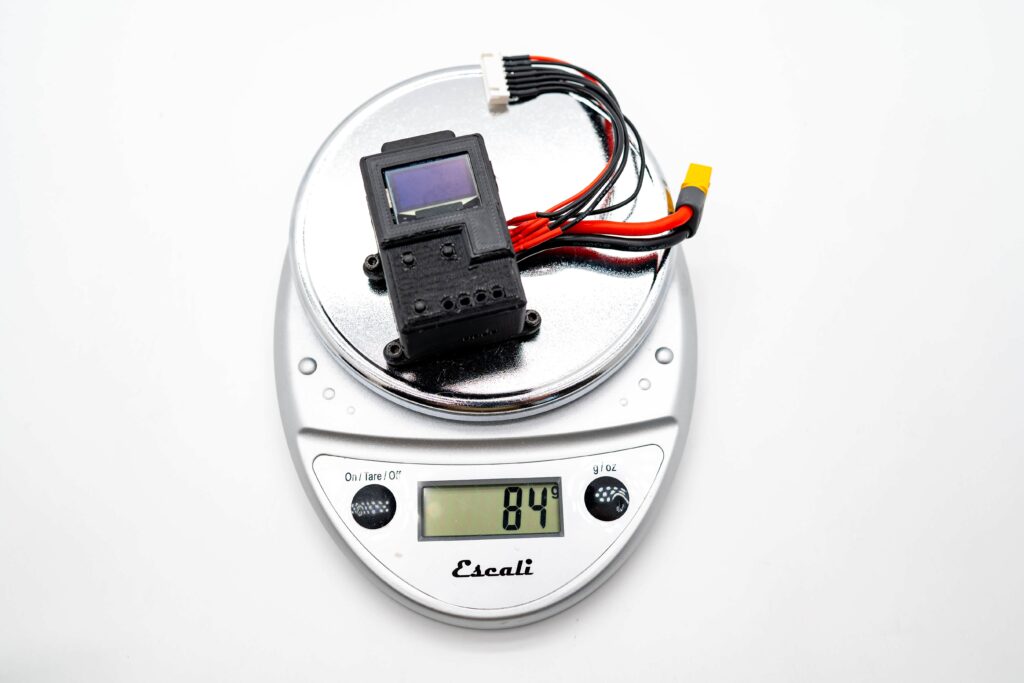

Module 84 grams
Testing DJI FPV Drone aircruiserfpv (7-05-2025)
Testing DJI FPV STOCK Drone with Genuine DJI cells
8 minutes Landed at
Overall voltage is 21.55 volts
Cell voltage: 3.6
20% battery left
Tested in Normal mode DJI FPV Drone 2000mAh battery Cells
Utilizing aircruiserfpv Breakout board
DJI Original Battery: 280 grams
DJI Original Battery cells: 242 grams
AircruiserFPV module and cage: 121 grams
Total: AircruiserFPV with DJI cells: 363 grams
75 grams heavier than the Original DJI battery
